Quick Function: Simple Mediation with Latent Variables

Introduction

This and other “Quick Function” articles are examples of R code to:

estimate the power,
search for a sample size with a target level of power, or
determine the range of sample sizes for a target level of power

for a specific scenario in typical mediation models using power4mome. Users can quickly adapt them for their scenarios. They are how-to guides and will not cover the technical details involved.

Prerequisite

These functions are wrappers to power4test(), n_from_power(), and n_region_from_power(). For simple scenarios, users do not need to know how to use these advanced functions, though knowledge about them can help customizing the search for the region. Further information on these functions can be found in Final Remarks

Scope

This file is for simple mediation models, and only use one function q_power_mediation_simple() from the package power4mome.

library(power4mome)

The Model

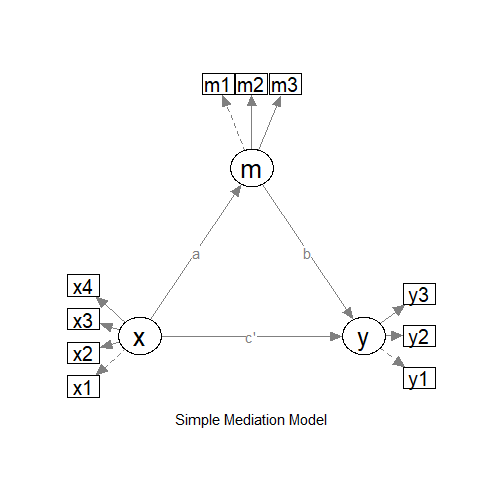

Suppose this is the model:

The Model

We want to do power analysis for the indirect effect along the path x->m->y. Suppose these are the expected effects:

a-path: medium
b-path: medium
c’-path: small

Convention for the Effect Sizes

To make it easy to specify the standardized population values of parameters, power4mome adopted the convention for Pearson’s r, just for convenience.

"nil": Nil (.00).
"s": Small (.10).
"m": Medium (.30),
"l": Large (.50).

There are also two intermediate levels:

"sm": Small-to-medium (.20).
"ml": Medium-to-large (.40).

If the effect is negative, just add a minus sign. For example, use "-m" to denote a negative medium effect.

For a path from one variable to another variable, the standardized coefficient is equal to the correlation if there are not other predictor, or if this predictor is uncorrelated with all other predictors. Therefore, though may not be perfect, we believe the convention of Pearson’s r is a reasonable one.

If necessary, users can specify the effect (on the standardized metric) directly.

Covariates in the Model to be Fitted

In applied research, the model to be fitted usually have other control variables, such as educational level. It may not be practical to specify all the probable effects of these control variables (though it is possible in power4mome).

Therefore, as a conservative assessment of power, users can first decide the population effects, and then adjust them slightly downward (e.g., from medium, "m", to small-to-medium, "sm") to take into account potential decrease in effects due to control variables to be included.

Model with Hypothesized Path Coefficients

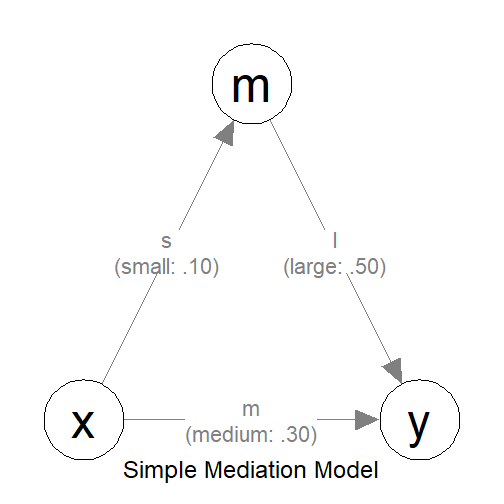

This is the model with the effect sizes, showing only the latent variables:

The Model with Effect Sizes

Test to be Used

In practice, nonparametric bootstrapping is usually used to test indirect effects. However, estimating its power using simulation is slow. A good-enough proxy is to estimate the power when testing this effect by Monte Carlo confidence interval. This is the default method in power4mome for tests of indirect effects.

Setting the Factor Loadings

One difficulty in doing power analysis for latent variable model is setting the population values for the indicators.

In power4mome, instead of setting factor loadings and error variances, users can specify the number of indicators and the population reliability of each latent factor. The corresponding factor loadings and error variances will be computed and specified automatically.

Therefore, when doing the power analysis, users can just specify the number of indicators (items) for each factor, which is usually known exactly or approximately in advance. The hypothesized population reliability coefficient may be based on previous studies or set to to a reasonable expectation (e.g., .70 for minimal acceptable reliability).

Find the Power

To estimate the power for a sample size, this is the code:

out_power <- q_power_mediation_simple(
  a = "m",
  b = "m",
  cp = "s",
  number_of_indicators = c(x = 3,
                           m = 4,
                           y = 5),
  reliability = c(x = .70,
                  m = .75,
                  y = .80),
  target_power = .80,
  nrep = 600,
  n = 200,
  R = 1000,
  seed = 1234
)

These are the arguments:

a: The hypothesized standardized effect from the predictor x to the mediator m. Can be one of the labels supported by the convention, or a numeric value.
b: The hypothesized standardized effect from the mediator m to the outcome variable y. Can be one of the labels supported by the convention, or a numeric value.
cp: The hypothesized standardized direct effect from the predictor x to the outcome variable y. Can be one of the labels supported by the convention, or a numeric value.
number_of_indicators: A named numeric vector of the numbers of indicators. The names need to be x, m, and y. If it has only one value, then all latent variables have the same number of indicators.
reliability: A named numeric vector of the population reliability. The names need to be x, m, and y. If it has only one value, then all latent variables have the same value for reliability.
nrep: The number of replications when estimating the power for a sample size. Default is 400. For a crude estimate, 600 or 800 is sufficient. For the candidate sample size to be used, set it to 2000 or even 5000 for a more precise estimate of the power.
R: The number of random samples used in forming Monte Carlo or nonparametric bootstrapping confidence intervals. Although they should be large when testing an effect in one single sample, they can be smaller because the goal is to estimate power across replications, not to achieve high accuracy in each sample. Default is 1000. Can be omitted if the default is acceptable.
seed: The seed for the random number generator. Note that, if parallel processing is used (this is the default), then the results are reproducible only if the configuration is exactly identical. Moreover, changes in the algorithm will also make results not reproducible even with the same seed. Nevertheless, it is still advised to set this seed to an integer, to make the results reproducible at least on the same machine and version of power4mome. For a moderate to small nrep, the results may be sensitive to the seed. It is advised to do a final check of the sample size to be used using an nrep of 2000 or 5000.

This is the output:

out_power
#>
#> ========== power4test Results ==========
#>
#>
#> ====================== Model Information ======================
#>
#> == Model on Factors/Variables ==
#> m ~ x
#> y ~ m + x
#>
#> == Model on Variables/Indicators ==
#> m ~ x
#> y ~ m + x
#>
#> m =~ m1 + m2 + m3 + m4
#> y =~ y1 + y2 + y3 + y4 + y5
#> x =~ x1 + x2 + x3
#> ====== Population Values ======
#>
#> Regressions:
#>                    Population
#>   m ~
#>     x                 0.300
#>   y ~
#>     m                 0.300
#>     x                 0.100
#>
#> Variances:
#>                    Population
#>    .m                 0.910
#>    .y                 0.882
#>     x                 1.000
#>
#> (Computing indirect effects for 2 paths ...)
#>
#> == Population Conditional/Indirect Effect(s) ==
#>
#> == Indirect Effect(s) ==
#>
#>               ind
#> x -> m -> y 0.090
#> x -> y      0.100
#>
#>  - The 'ind' column shows the indirect effect(s).
#>
#> ==== Population Reliability ====
#>
#>    x    m   y
#>  0.7 0.75 0.8
#>
#> == Population Standardized Loadings ==
#>
#>      x     m     y
#>  0.661 0.655 0.667
#> ======================= Data Information =======================
#>
#> Number of Replications:  600
#> Sample Sizes:  200
#>
#> Call print with 'data_long = TRUE' for further information.
#>
#> ==================== Extra Element(s) Found ====================
#>
#> - fit
#> - mc_out
#>
#> === Element(s) of the First Dataset ===
#>
#> ============ <fit> ============
#>
#> lavaan 0.6-21 ended normally after 27 iterations
#>
#>   Estimator                                         ML
#>   Optimization method                           NLMINB
#>   Number of model parameters                        27
#>
#>   Number of observations                           200
#>
#> Model Test User Model:
#>
#>   Test statistic                                24.159
#>   Degrees of freedom                                51
#>   P-value (Chi-square)                           0.999
#>
#> =========== <mc_out> ===========
#>
#>
#> == A 'mc_out' class object ==
#>
#> Number of Monte Carlo replications: 1000
#>
#>
#> =============== <test_indirect: x->m->y> ===============
#>
#> Mean(s) across replication:
#>    est  cilo  cihi   sig pvalue
#>  0.091 0.013 0.191 0.732  0.058
#>
#> - The value 'sig' is the rejection rate.
#> - If the null hypothesis is false, this is the power.
#> - Number of valid replications for rejection rate: 600
#> - Proportion of valid replications for rejection rate: 1.000
#>
#> ========== power4test Power ==========
#>
#> [test]: test_indirect: x->m->y
#> [test_label]: Test
#>     est   p.v reject r.cilo r.cihi
#> 1 0.091 1.000  0.732  0.695  0.766
#> Notes:
#> - p.v: The proportion of valid replications.
#> - est: The mean of the estimates in a test across replications.
#> - reject: The proportion of 'significant' replications, that is, the
#>   rejection rate. If the null hypothesis is true, this is the Type I
#>   error rate. If the null hypothesis is false, this is the power.
#> - r.cilo,r.cihi: The confidence interval of the rejection rate, based
#>   on Wilson's (1927) method.
#> - Refer to the tests for the meanings of other columns.

The first set of output is the default printout of the output of power4test(). This can be used to check the model specified. It also automatically computes the population standardized indirect effect(s).

The second section is the output of rejection_rates(), showing the power under the column reject.

In this example, the power is about 0.73 for sample size 200, 95% confidence interval [0.69, 0.77].

Find the Sample Size with the Target Power

It is also possible to estimate the sample size with the target level of power. This can be done by trying different sample sizes. However, if a high level of precision is desired and so a large number of replications (nrep), say 2000, is needed.

An alternative way is find the probable sample size using an algorithm. This can be done with mode = "n", to find the n (sample size). By default, the probabilistic bisection algorithm by Waeber et al. (2013) is used. See Chalmers (2024) for an introduction on using this algorithm for power analysis (note that the original algorithm by Waeber et al., 2013, is used in power4mome).

Finding the sample size with the target level of power can be done using the same code above, with the argument mode = "n" added, and a few more arguments:

out_n <- q_power_mediation_simple(
  a = "m",
  b = "m",
  cp = "s",
  number_of_indicators = c(x = 3,
                           m = 4,
                           y = 5),
  reliability = c(x = .70,
                  m = .75,
                  y = .80),
  target_power = .80,
  x_interval = c(100, 2000),
  R = 199,
  final_nrep = 2000,
  final_R = 1000,
  seed = 1234,
  mode = "n"
)

These are the arguments for this mode:

target_power: The target level of power. Default is .80, and can be omitted if this is the desired level of power.
n: This is the initial n. Its value does not matter because the search will be based on an initial interval (x_interval). It can be omitted when mode is "n".
x_interval: The interval of sample sizes to search. Default is 50 to 2000 and so this argument can be omitted is this range is desired. For the default algorithm, it is preferable to have a wide initial range. (If the model may be difficult to fit for a small sample size, increase the lower limit to a value large enough for the model.)
nrep: This argument is not necessary and should be omitted.
R: Set this number of a value supported by the method proposed by Boos & Zhang (2000) for the desired level of confidence (95% by default). The first few values are 39, 79, 119, 159, and 199. 199 is recommended to balance speed and accuracy.
final_nrep: The desired number of replication. The search will use a much smaller value for nrep. However, the probable solution will be checked using this number of replications. a sample size will be returned as a solution only if it is close enough to target_power based on this number of replications.
final_R: Although the search can use a much small value for R due to the method by Boos & Zhang (2000), users may want a larger number of R for the solution. To do this, set final_R to the R to be used in the checking a candidate sample size.
mode: Setting mode to "n" enables this mode.

Note that this process can take a some time, sometimes more than 10 minutes. Nevertheless, power analysis is usually conducted in the planning stage of a study, and so the slow processing time is acceptable in this stage.

For latent variable models in the mode "n", it is recommended to use x_interval to increase the minimum sample size for the interval because the default lower limit is 50.

This is the printout, showing only the section from the output of n_from_power():

#> ========== n_from_power Results ==========
#>
#>
#>                                      Setting
#> Predictor(x):                    Sample Size
#> Parameter:                               N/A
#> goal:                           close_enough
#> what:                                  point
#> algorithm:           probabilistic_bisection
#> Level of confidence:                  95.00%
#> Target Power:                          0.800
#>
#> - Final Value of Sample Size (n): 229
#>
#> - Final Estimated Power (CI): 0.805 [0.787, 0.822]
#>
#> Call `summary()` for detailed results.

In this example, the estimated sample size with power equal to (close to) the target level (0.80) is 229.

Based on 2000 replications, determined by final_rep, the estimated power for 229 is 0.805, 95% confidence interval [0.787, 0.822].

How is Being “Close Enough” Defined

Being “Close enough” is defined by the tolerance value, which is determined internally based on the number of replications (final_nrep). For a smaller value of final_rep, the tolerance will be larger, and so a sample with estimated power farther away from the target power would be considered as “close enough.” For a final_nrep of 2000, the default tolerance is 0.018, which should be practically precise enough.

Find the Region of Sample Sizes

If it is not necessary to have a high precision to find the sample size with the target power, we can find an approximate region of sample sizes with levels of power not significantly different from the target power. This region is useful for determining a range of sample sizes likely to have sufficient power, but are not greater than necessary when resources are limited.

Note that, unlike mode "n", this process use bisection by default, and so the number of replications used in each trial (iteration) need to be close to the desired final level of replication. Therefore, this process can sometimes be very fast, but sometimes can be slow. Again, power analysis is usually conducted in the planning stage of a study, and so the slow processing time may be acceptable in this stage.

Finding the region can be done using the same code for estimating power (mode "power"), with only the argument mode = "region" added:

out_region <- q_power_mediation_simple(
  a = "m",
  b = "m",
  cp = "s",
  number_of_indicators = c(x = 3,
                           m = 4,
                           y = 5),
  reliability = c(x = .70,
                  m = .75,
                  y = .80),
  target_power = .80,
  nrep = 600,
  n = 200,
  R = 1000,
  seed = 1234,
  mode = "region"
)

These are the arguments for this mode:

target_power: The target level of power. Default is .80, and can be omitted if this is the desired level of power
n: This is the initial n. For bisection, this will affect the search because the initial interval will be estimated based on this value Nevertheless, even if this sample size’s power is very different from the target power, the search should still be able to find the target region, though may be slower. If omitted, it will be determined internally.
nrep: This number of replications will be used for all iterations. Therefore, this should not be a large value, unlike mode "n".
R: For bisection, this value will be used for all iterations.
mode: Setting mode to "region" enables this mode.

This is the printout, showing only the section from the output of n_region_from_power():

#> ========== n_region_from_power Results ==========
#>
#> Call:
#> n_region_from_power(object = `<hidden>`, target_power = 0.8,
#>     progress = TRUE, simulation_progress = NULL, max_trials = NULL,
#>     seed = 1234, algorithm = NULL)
#>
#>                      Setting
#> Predictor(x)         Sample Size
#> Goal:                Power significantly below or above the target
#> algorithm:           bisection
#> Level of confidence: 95.00%
#> Target Power:        0.800
#>
#> Solution:
#>
#> Approximate region of sample sizes with power:
#> - not significantly different from 0.800: 219 to 240
#> - significantly lower than 0.800: 219
#> - significantly higher than 0.800: 240
#>
#> Confidence intervals of the estimated power:
#> - for the lower bound (219): [0.733, 0.800]
#> - for the upper bound (240): [0.807, 0.866]
#>
#> Call `summary()` for detailed results.

In this example, the range of the sample size is 219 to 240.

The large the nrep, the higher the precision and so the narrower this region. However, it will also take longer to run.

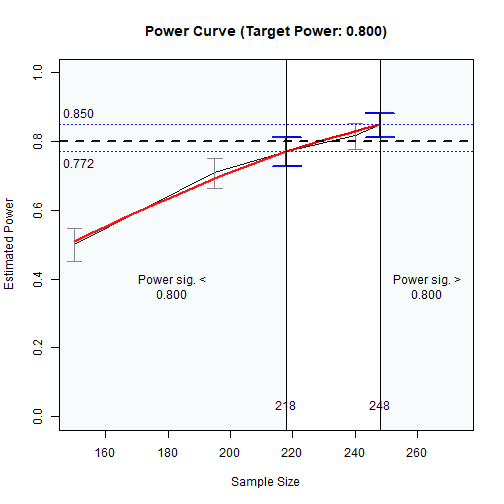

The results can also be visualized using the plot() function:

The Plot of Sample Sizes Searched

The region between the shaded areas is the approximate region of sample sizes found.

Final Remarks

Other Models

Quick how-to articles on other common mediation models, including those with latent variables, can be found from the list of articles

The package power4mome supports an arbitrary model specified by lavaan syntax, including those with moderators. Interested users can refer to the articles above.

Technical Details

For options of power4test(), n_from_power(), and n_region_from_power(), please refer to their help pages, as well as the Get-Started article and this article for n_from_power(), which is also the function to find one of the regions, called twice by n_region_from_power().

Reference(s)

Boos, D. D., & Zhang, J. (2000). Monte Carlo evaluation of resampling-based hypothesis tests. Journal of the American Statistical Association, 95(450), 486–492. https://doi.org/10.1080/01621459.2000.10474226

Chalmers, R. P. (2024). Solving variables with Monte Carlo simulation experiments: A stochastic root-solving approach. Psychological Methods. https://doi.org/10.1037/met0000689

Waeber, R., Frazier, P. I., & Henderson, S. G. (2013). Bisection search with noisy responses. SIAM Journal on Control and Optimization, 51(3), 2261–2279. https://doi.org/10.1137/120861898

2026-03-07

Introduction

Prerequisite

Scope

The Model

Convention for the Effect Sizes

Covariates in the Model to be Fitted

Model with Hypothesized Path Coefficients

Test to be Used

Setting the Factor Loadings

Find the Power

Find the Sample Size with the Target Power

How is Being “Close Enough” Defined

Find the Region of Sample Sizes

Final Remarks

Other Models

Technical Details

Reference(s)
