Sample Size Determination with Nonnormal Variables: Path Models of Observed Variables

Introduction

This article illustrates how to do power analysis and sample size determination in some typical observed variable path models, with the variables hypothesized to be nonnormally distributed and the model to be estimated using robust methods such as MLR in lavaan. The package power4mome will be used for illustration.

Prerequisite

Basic knowledge about fitting models by lavaan and power4mome is required.

This file is not intended to be an introduction on how to use functions in power4mome. For details on how to use power4test(), refer to the Get-Started article. Please also refer to the help page of n_region_from_power(), and the article on n_from_power(), which is called twice by n_region_from_power() to find the regions described below.

Scope

A simple mediation model of observed variables will be used as an example. Users new to the package are recommended to read the article on the steps for a path model with observed variables having a multivariate normal distribution (the default).

Set Up the Model and Test

Load the packages first:

library(power4mome)

Estimate the power for a sample size.

The code for the model:

model <-
"
m ~ x
y ~ m + x
"

model_es <-
"
m ~ x: m
y ~ m: m
y ~ x: s
"

The Model

Refer to this article on how to set number_of_indicators and reliability when calling power4test().

Specify the Distributions

Suppose that we expect the predictor (x) has a uniform distribution because cases were sample more or less evenly across a range of values of x. Moreover, the outcome variable (y) is a measure of a mental health problem and so its error term is positively skewed.¹

Without real data, it is difficult to know the actual distribution. Nevertheless, we can select a distribution that reasonably approximate the expected distribution of a variable or an error term.

Built-In Functions For Random Numbers

The package power4mome comes with some ready-to-use function for generating random error. A full list of them can be found here. To be used in power4test(), these functions need to have the distribution standardized such that the population mean and standard deviation are 0 and 1, respectively. All the build-in functions already have the distributions standardized.

For example, the function rexp_rs() can be used to approximate a heavily positively skewed distribution. The function used is stats::rexp() from base R, but, by default, the distribution is transformed such that the population mean and standard deviation are 0 and 1, respectively.

An Example

Suppose we would like to estimate the power to test the indirect effect using Monte Carlo confidence interval. We expect that one or more observed variable or error term is not normally distributed. For the sake of illustration, the following distributions hypothesized for the x and the error term of y.

The Distribution of `x`

Let’s assume that the distribution of x is a severely positively skewed distribution. This can be simulated by the function rlnorm_rs(). This is an illustration of the distribution:

set.seed(1234)
x_dist <- rlnorm_rs(10000)
hist(x_dist)

plot of chunk x_dist_obs

The Distribution of the Error Term of `y`

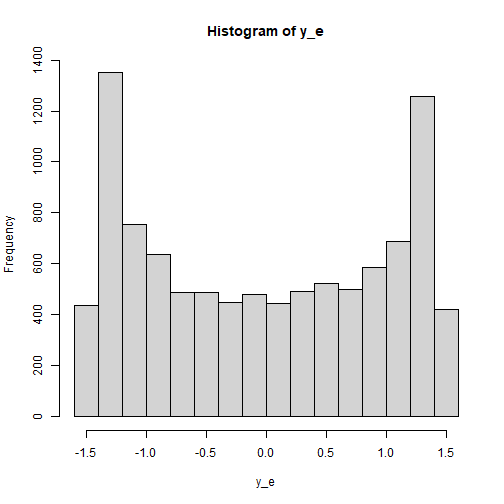

Last, let’s assume that the distribution of the error terms of y is bounded and is bimodal. We we rbeta_rs() to simulate this distribution, setting the parameters shape1 and shape2 to create the bimodal distribution:

set.seed(1234)
y_e <- rbeta_rs(10000,
                shape1 = .5,
                shape2 = .5)
hist(y_e)

plot of chunk y_e_obs

Set the Distributions by `x_fun`

This section illustrates how to set up the call to power4test(), with observed variables or error terms generated using the distributions described above. We would like to check the model first. Therefore, the test of indirect effect is not added for now.

out <- power4test(
  nrep = 600,
  model = model,
  pop_es = model_es,
  n = 100,
  x_fun = list(x = list(rlnorm_rs),
               y = list(rbeta_rs, shape1 = .5, shape2 = .5)),
  iseed = 1234,
  parallel = TRUE)

How to Use `x_fun`

The argument x_fun is used to specify the function used to generate the observed variables. If an observed variable is a “pure” predictor (it is not predicted by any other variables in the model), then this is the function to generate its values. If it is an endogenous variable (it is predicted by at least one other variable in the model), then this is the function to generate its error term.

The value must be a named list, with the name being one of variables (x, m, and y in this example).

Each element must itself a list, with the first argument is the function to be used.

For example, x = list(rlnorm_rs) indicates that the function rlnorm_rs will be used to generate x.

If there are additional arguments to be passed to this function, include them as named arguments in the list.

For example, if an element is y = list(rbeta_rs, shape1 = .5, shape2 = .5), then rbeta_rs will be used to generate y or its error term, and the arguments shape1 and shape2 will both be set .5.

If a variable is not included in the lists for x_fun, the default distribution used is a normal distribution.

Functions That `x_fun` and `e_fun` Can Use

In principle, any function can be used to generate the numbers, as long as it meets these requirements:

It has an argument named n, the number of random numbers to be generated.
It returns a numeric vector.

Though no error will be returned, to ensure that the population standardized coefficients are of the specified values, the functions for x_fun and e_fun should generate numbers from a population with mean and standard deviation equal to 0 and 1, respectively.

Check The Generated Data

To print the details of the generated data, including the descriptive statistics, use print with data_long = TRUE:

print(out,
      data_long = TRUE)

This is part of the output:

#> ==== Descriptive Statistics ====
#>
#>   vars     n mean   sd skew kurtosis se
#> m    1 60000 0.00 1.00 0.16     0.50  0
#> y    2 60000 0.00 1.06 0.04    -1.13  0
#> x    3 60000 0.01 1.00 5.24    53.74  0

The descriptive statistics shows that the distributions are not normal. As expected, those of x is positively skewed, while those of y are nearly symmetric but light tailed (negative excess kurtosis).

Note that the distribution of an endogenous variable depends on both its predictors and and its error term. Therefore, even though the error term of m is normally distributed, m is still not normally distributed because x is positively skewed.

Fit the Model by MLR (Robust Maximum Likelihood)

Because of the nonnormal distribution, we would like to estimate the power when a robust estimation method is used. One common method used in lavaan is MLR. Although this method and the default, maximum likelihood (ML), yield the same point estimates, their standard errors are different. Therefore, the results from Monte Carlo confidence intervals are also different.

The argument fit_model_args can be use to pass arguments, as a named list, to the fit function, which is lavaan::sem() by default.

To use MLR in lavaan::sem(), we use estimator = "MLR". Therefore, we add the argument fit_model_args = list(estimator = "MLR") in the call to power4test():

out <- power4test(
  nrep = 600,
  model = model,
  pop_es = model_es,
  n = 100,
  x_fun = list(x = list(rlnorm_rs),
               y = list(rbeta_rs, shape1 = .5, shape2 = .5)),
  fit_model_args = list(estimator = "MLR"),
  iseed = 1234,
  parallel = TRUE)

We can verify that MLR is used by printing the results:

print(out)

This is part of the output:

#> ============ <fit> ============
#>
#> lavaan 0.6-21 ended normally after 1 iteration
#>
#>   Estimator                                         ML
#>   Optimization method                           NLMINB
#>   Number of model parameters                         5
#>
#>   Number of observations                           100
#>
#> Model Test User Model:
#>                                               Standard      Scaled
#>   Test Statistic                                 0.000       0.000
#>   Degrees of freedom                                 0           0

As shown in the printout, MLR was used and so there is a column Scaled in the printout of lavaan.

Add the Test and Estimate Power

We now can add the test and estimate power. See this article for details on the test function test_indirect_effect() and how to set the argument test_fun and test_args. R_for_bz(200) is used to set R to the largest value less than 200 that is supported by the method proposed by Boos & Zhang (2000). ²

out <- power4test(
  nrep = 600,
  model = model,
  pop_es = model_es,
  n = 100,
  x_fun = list(x = list(rlnorm_rs),
               y = list(rbeta_rs, shape1 = .5, shape2 = .5)),
  fit_model_args = list(estimator = "MLR"),
  R = R_for_bz(200),
  ci_type = "mc",
  test_fun = test_indirect_effect,
  test_args = list(x = "x",
                   m = "m",
                   y = "y",
                   mc_ci = TRUE),
  iseed = 1234,
  parallel = TRUE)

The rejection rate (power) for this example can be found by rejection_rates():

rejection_rates(out)
#> [test]: test_indirect: x->m->y
#> [test_label]: Test
#>     est   p.v reject r.cilo r.cihi
#> 1 0.091 1.000  0.643  0.604  0.681
#> Notes:
#> - p.v: The proportion of valid replications.
#> - est: The mean of the estimates in a test across replications.
#> - reject: The proportion of 'significant' replications, that is, the
#>   rejection rate. If the null hypothesis is true, this is the Type I
#>   error rate. If the null hypothesis is false, this is the power.
#> - Some or all values in 'reject' are estimated using the extrapolation
#>   method by Boos and Zhang (2000).
#> - r.cilo,r.cihi: The confidence interval of the rejection rate, based
#>   on Wilson's (1927) method.
#> - Wilson's (1927) method is used to approximate the confidence
#>   intervals of the rejection rates estimated by the method of Boos and
#>   Zhang (2000).
#> - Refer to the tests for the meanings of other columns.

Using `x_fun` in Other Functions

Other functions that make use of power4test() can also use the arguments x_fun and fit_model_args.

For example, the output above, with nonnormal variables, can be used directly by n_from_power() to find a sample size given a target power:

n_power <- n_from_power(
              out,
              target_power = .80,
              x_interval = c(50, 200),
              final_nrep = 2000,
              seed = 1234
            )

The output with nonnormal variables can also be used directly by n_power_region() to find a region of sample sizes given a target power:

n_power_region <- n_region_from_power(
                      out,
                      seed = 1357
                    )

The quick functions, described in these articles, also support the e_fun and fit_model_args arguments. They are set in the same way as in power4test()

This is an example for estimating the power for a specific sample size:

q_power <- q_power_mediation_simple(
  a = "m",
  b = "m",
  cp = "s",
  x_fun = list(x = list(rlnorm_rs),
               y = list(rbeta_rs, shape1 = .5, shape2 = .5)),
  fit_model_args = list(estimator = "MLR"),
  target_power = .80,
  nrep = 600,
  n = 100,
  R = R_for_bz(200),
  seed = 1234
)

This is an example of finding a sample size given a target power (mode "n"):

q_power_n <- q_power_mediation_simple(
  a = "m",
  b = "m",
  cp = "s",
  x_fun = list(x = list(rlnorm_rs),
               y = list(rbeta_rs, shape1 = .5, shape2 = .5)),
  fit_model_args = list(estimator = "MLR"),
  target_power = .80,
  R = R_for_bz(200),
  x_interval = c(50, 300),
  final_nrep = 2000,
  seed = 1234,
  mode = "n"
)

Reference(s)

Boos, D. D., & Zhang, J. (2000). Monte Carlo evaluation of resampling-based hypothesis tests. Journal of the American Statistical Association, 95(450), 486–492. https://doi.org/10.1080/01621459.2000.10474226

2026-03-16
