Set the Layout of a Mediation Model Automatically

Set the layout of variables in a mediation model in the typical left-to-right style automatically.

Usage

auto_layout_mediation(
  object,
  x = NULL,
  y = NULL,
  exclude = NULL,
  v_pos = c("middle", "lower", "upper"),
  v_preference = c("upper", "lower"),
  output = c("matrix", "xy"),
  update_plot = TRUE
)

Arguments

object: It can be the output of lavaan::sem() or lavaan::lavaan(), or a lavaan-class object. The model must have a beta matrix of the structural path. It can also be a qgraph object generated by semPlot::semPaths(). A beta`` matrix will be reconstructed from the graph. It can also be a list of [qgraph::qgraph] objects, probably though not necessarily from a multigroup model. If it is a list of [qgraph::qgraph] objects and update_plotisTRUE`, then the function will be applied to all the objects.
x: The variables that will be treated as (pure) x variables: placed on the left of the plot, with no variables predicting them. If NULL, the default, the x variable(s) will be identified automatically.
y: The variables that will be treated as (pure) y variables: placed on the right of the plot, with no variables predicted by them. If NULL, the default, the y variable(s) will be identified automatically.
exclude: The variables to be omitted from the plot, typically the covariates ("control variables") in a model. If NULL, the default, all variables involved in the structural paths will be used in the plot. It is possible to exclude y-variables. However, excluding mediators is not allowed.
v_pos: How the mediators are to be positioned vertically in the first pass. If "middle", the function will try to position them close to the center of the plot. If "lower", it will try to position them to the lower part of the plot. If "upper", it will try to position them to the upper part of the plot.
v_preference: The preference in shifting the mediators upward ("upper") or downward ("lower") in the second pass to avoid blocking or overlapping with any paths in the models. It is used only whenv_pos is "middle". If v_pos is "lower", then v_preference will be forced to be "lower". If v_posis"upper", then v_preferencewill be forced to be"upper".
output: The format of the output, used if update_plot is FALSE. If "matrix", the output is a two-dimension character matrix with the names of the variables. If "xy", the output is a two-column matrix of the relatived x- and y-positions of each variables.
update_plot: Logical. Used if object is a qgraph object. If TRUE, the function returns a modified qgraph object with the new layout. If FALSE

Value

If object is a lavaan-class object, or if update_plot is FALSE, it returns a two-dimension layout matrix of the position of the nodes, or a two-column matrix of the x-y positions of the nodes, depending on the argument output.

If object is a qgraph object and update_plot is TRUE, it returns a qgraph object with the the modified layout.

If object is a list of qgraph::qgraph objects and update_plot is TRUE, then it returns a list of processed qgraph::qgraph objects.

Details

Typically, a path model with some x variables, some y variables, and some mediators are drawn from left to right. This function tries to generate the layout matrix automatically, meeting the following requirements:

The predictor(s), x variables(x), is/are placed to the left.
The outcome variable(s), y variable(s), is/are placed to the right.
The mediator(s) are positioned between x variable(s) and y variable(s) such that all paths point to the right. That is, no vertical path.
The vertical position(s) of the mediator(s) will be adjusted such that no path passes through a mediator. That is, all paths are visible and not blocked by any mediator.

Multigroup Models or a List of Plots

The function supports a multigroup model and a list of plots. However, the structural parts of all groups or plots must be identical: same variables, and same paths.

Examples


library(lavaan)
library(semPlot)

# Create a dummy dataset
mod_pa <-
"
m11 ~ c1 + x1
m21 ~ c2 + m11
m2 ~ m11 + c3
m22 ~ m11 + c3
y ~ m2 + m21 + m22 + x1
"
fit <- lavaan::sem(
          mod_pa,
          do.fit = FALSE
        )
dat <- simulateData(
          parameterTable(fit),
          sample.nobs = 500,
          seed = 1234
        )
fit <- lavaan::sem(
          mod_pa,
          dat
        )

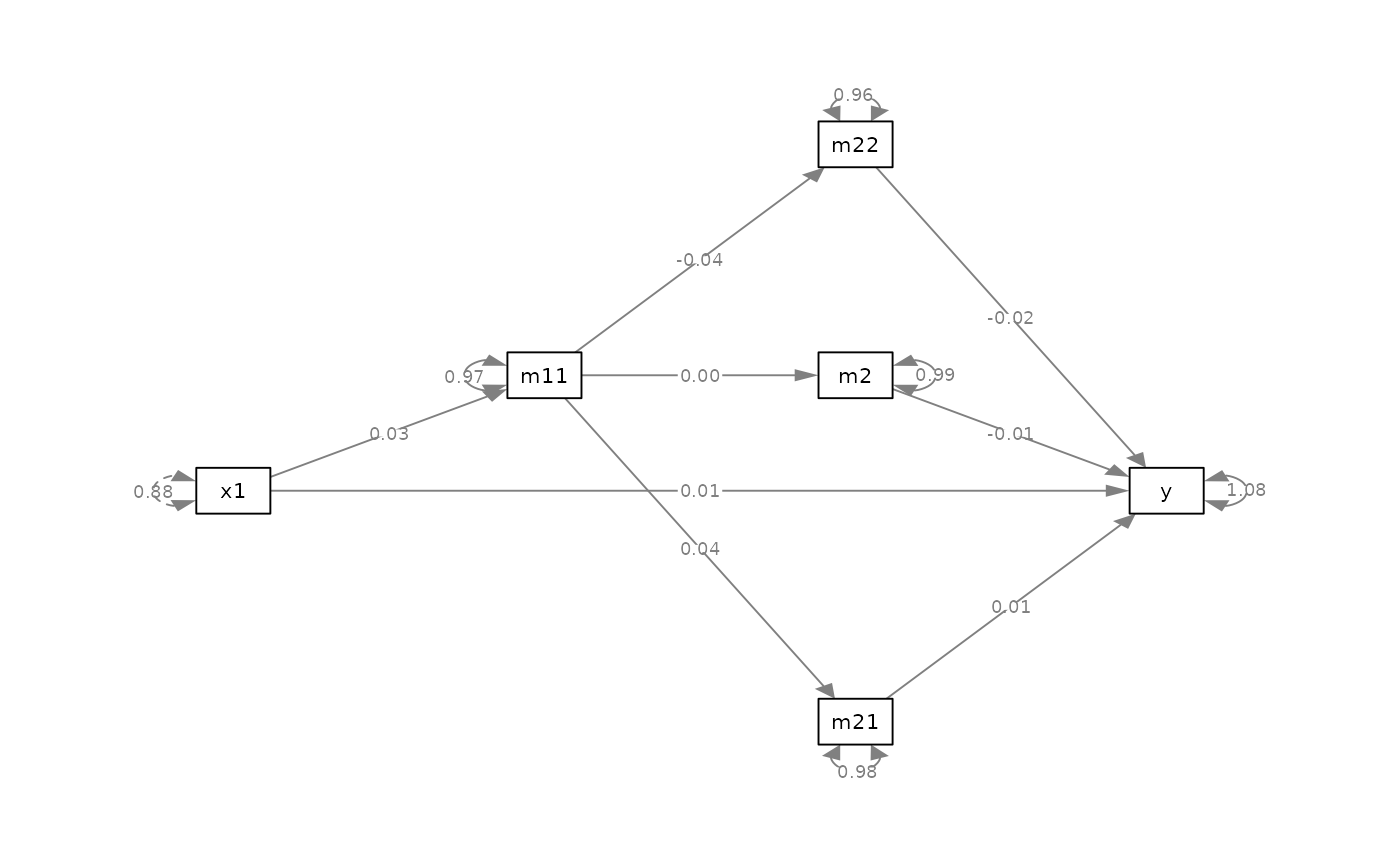

# Set the layout
m <- auto_layout_mediation(
        fit,
        exclude = c("c1", "c2", "c3")
      )
pm <- semPlotModel(fit) |> drop_nodes(c("c1", "c2", "c3"))
semPaths(
          pm,
          whatLabels = "est",
          layout = m
        )

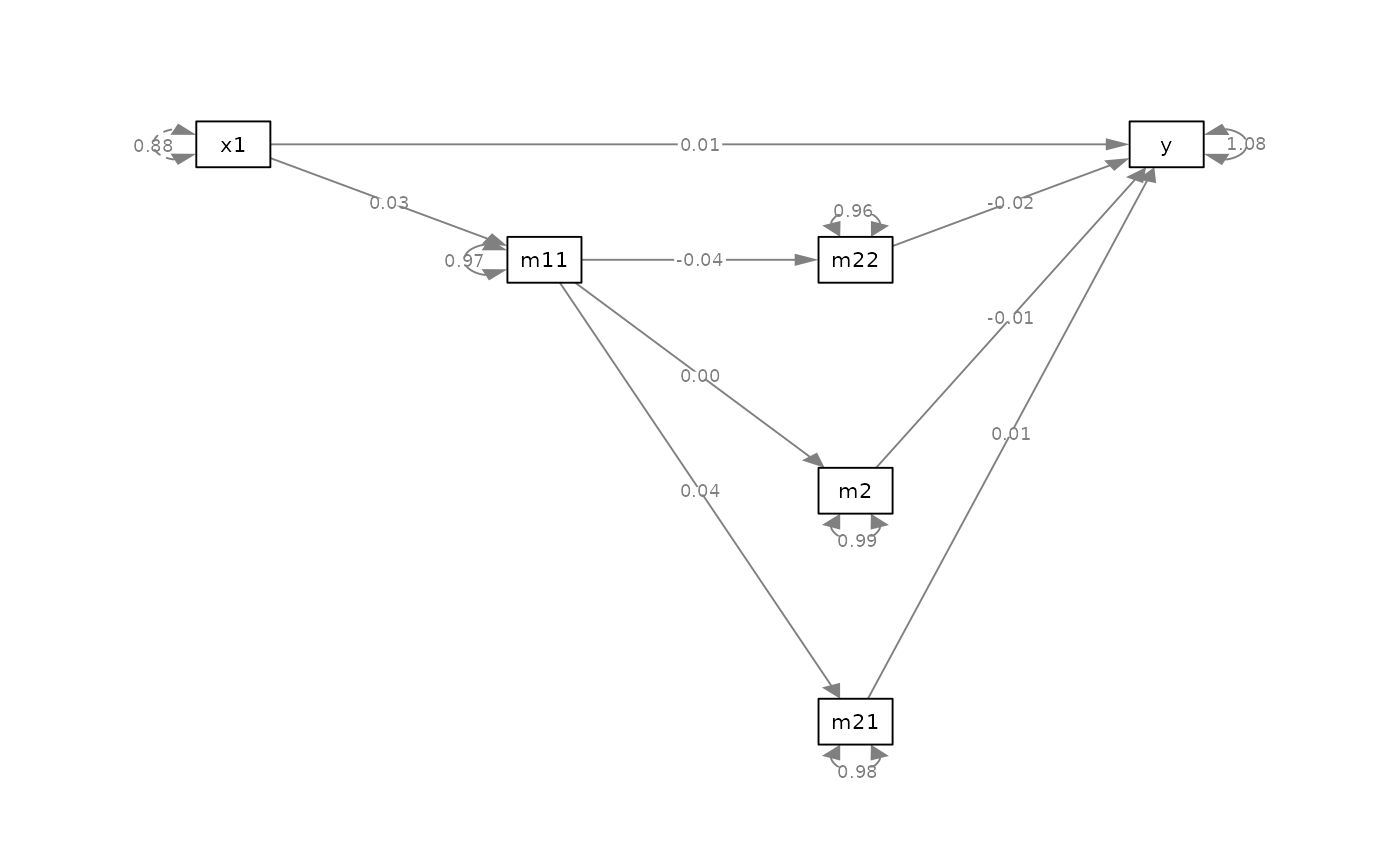

# v_pos = "lower"
m <- auto_layout_mediation(
        fit,
        exclude = c("c1", "c2", "c3"),
        v_pos = "lower"
      )
pm <- semPlotModel(fit) |> drop_nodes(c("c1", "c2", "c3"))
p0 <- semPaths(
          pm,
          whatLabels = "est",
          layout = m
        )

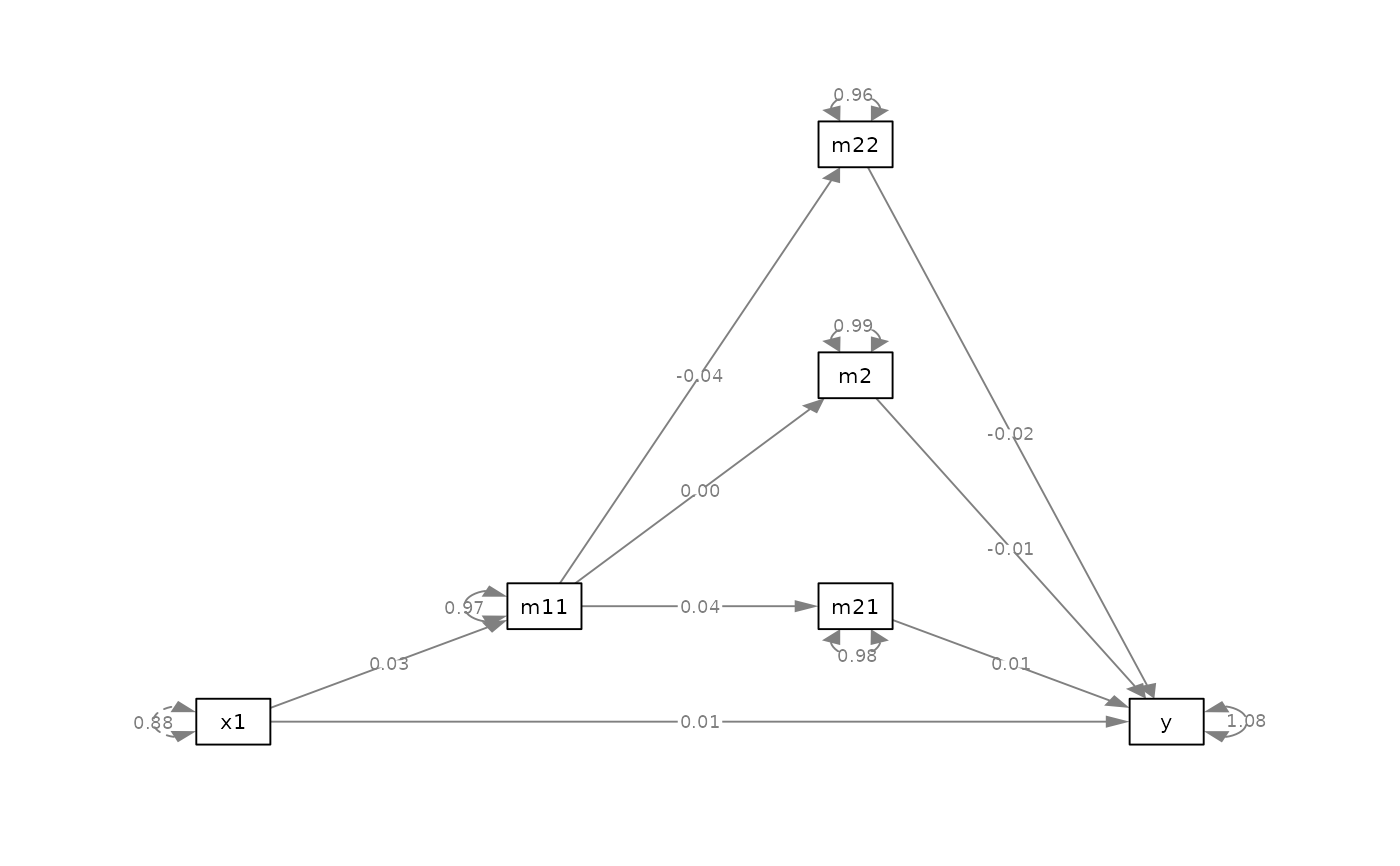

# v_pos = "upper"
m <- auto_layout_mediation(
        fit,
        exclude = c("c1", "c2", "c3"),
        v_pos = "upper"
      )
pm <- semPlotModel(fit) |> drop_nodes(c("c1", "c2", "c3"))
p0 <- semPaths(
          pm,
          whatLabels = "est",
          layout = m
        )

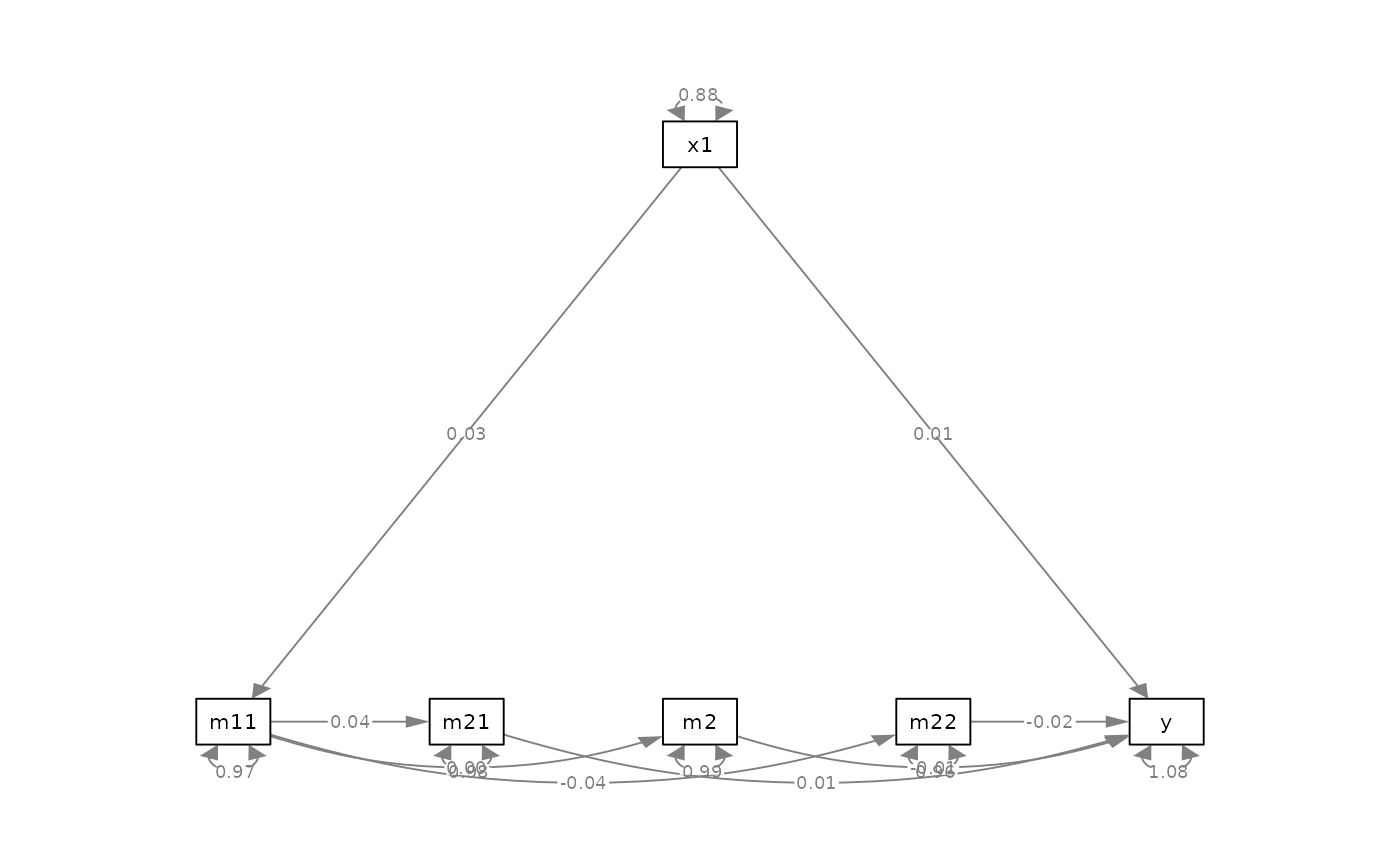

# Can modify a qgraph

pm <- semPlotModel(fit) |> drop_nodes(c("c1", "c2", "c3"))
p <- semPaths(
          pm,
          whatLabels = "est"
        )

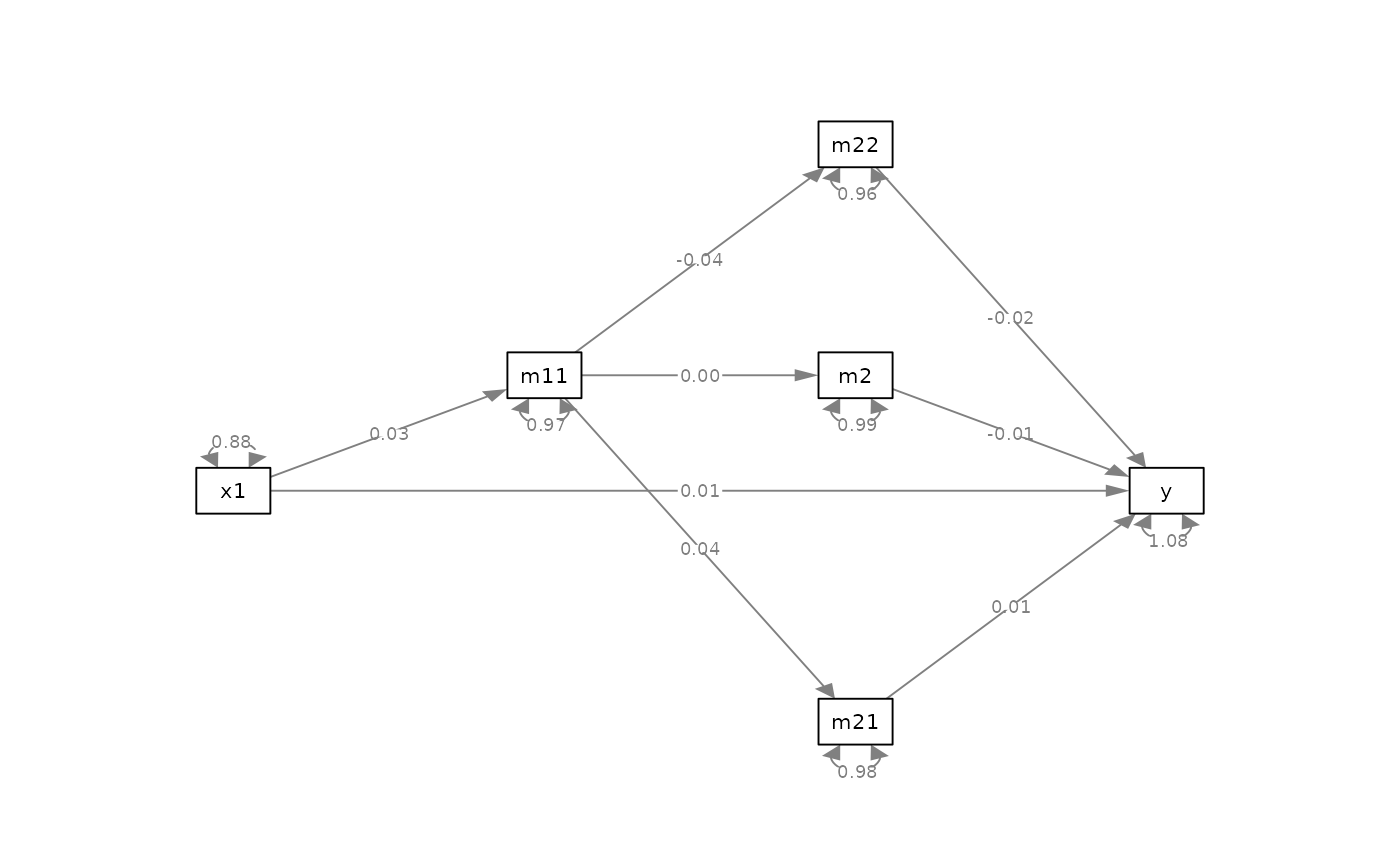

p2 <- auto_layout_mediation(p)
plot(p2)
