Set the Sizes of Selected Nodes

Source: R/set_node_size.R
set_node_size.Rd

Set the sizes of selected nodes.

Usage

set_node_size(
  semPaths_plot,
  values = NULL,
  how = c("ratio", "value"),
  check_nodes = TRUE
)

set_node_width(
  semPaths_plot,
  values = NULL,
  how = c("ratio", "value"),
  check_nodes = TRUE
)

set_node_height(
  semPaths_plot,
  values = NULL,
  how = c("ratio", "value"),
  check_nodes = TRUE
)

set_node_shape(semPaths_plot, values = NULL, check_nodes = TRUE)

Arguments

semPaths_plot

A qgraph::qgraph object generated by semPlot::semPaths, or a similar qgraph object modified by other semptools functions. It can also be a list of qgraph::qgraph objects, probably though not necessarily from a multigroup model. If it is a list of qgraph::qgraph objects, then the function will be applied to all the objects.

values

A named vector or a list of named list. See the Details section on how to set this argument.

how

How the width will be changed. If "ratio", then the new width is the original width multiplied by the supplied value. If "value", then the new width is set to the supplied value.

check_nodes

Logical. If TRUE and at least one node specified in values are not in semPaths_plot.

Value

A qgraph::qgraph based on the original one, with the sizes of selected nodes changed. If semPaths_plot is a list of qgraph::qgraph objects, then a list of processed qgraph::qgraph objects will be returned.

Details

Modify a qgraph::qgraph object generated by semPlot::semPaths and change the sizes of selected nodes.

These arguments can be set in three ways.

For a named vector, the name of an element should be the nodes for which the attributes are to be changed. The names need to the displayed names if plotted, which may be different from the names in the model.

For example, to change the size-related attribute of x, the name should be "x". Therefore, c("y" = 2, "x" = 3) changes the selected attributes of the nodes y and x to 2 and 3, respectively.

For a list of named lists, each named list should have two named values: node and new_value. The size-related attribute of node will changed based on new_value.

The second approach is no longer recommended, though kept for backward compatibility.

The last approach is setting the size-related attribute to a one-element vector with no name. All nodes in plot will then have their sizes changed based on this value.

Shape, Width, and Height

How width and height are used depends on shape. The supported values of shape depends on qgraph. Common values are are "square", "rectangle", "circle", "rectangle", and "ellipse". For "square" and "circle", only the value of width is used to determine the size of the node.

Note on Changing a Value

There are also two modes for changing an attribute. If how = "ratio", then the new value, such as size, is equal to the original value multiplied by the supplied value. For example, if the supplied value is 2, and the original size is 5, the new size is 10.

If how = "value", then the new value is set to the user supplied value. For example, if the supplied value is 15, then the new value is 15, regardless of the original value.

Examples

mod_pa <-
  'x1 ~~ x2
   x3 ~  x1 + x2
   x4 ~  x1 + x3
  '
fit_pa <- lavaan::sem(mod_pa, pa_example)
m <- matrix(c("x1",   NA,   NA,
                NA, "x3", "x4",
              "x2",   NA,   NA), byrow = TRUE, 3, 3)
p_pa <- semPlot::semPaths(fit_pa, whatLabels="est",
            style = "ram",
            nCharNodes = 0, nCharEdges = 0,
            layout = m)

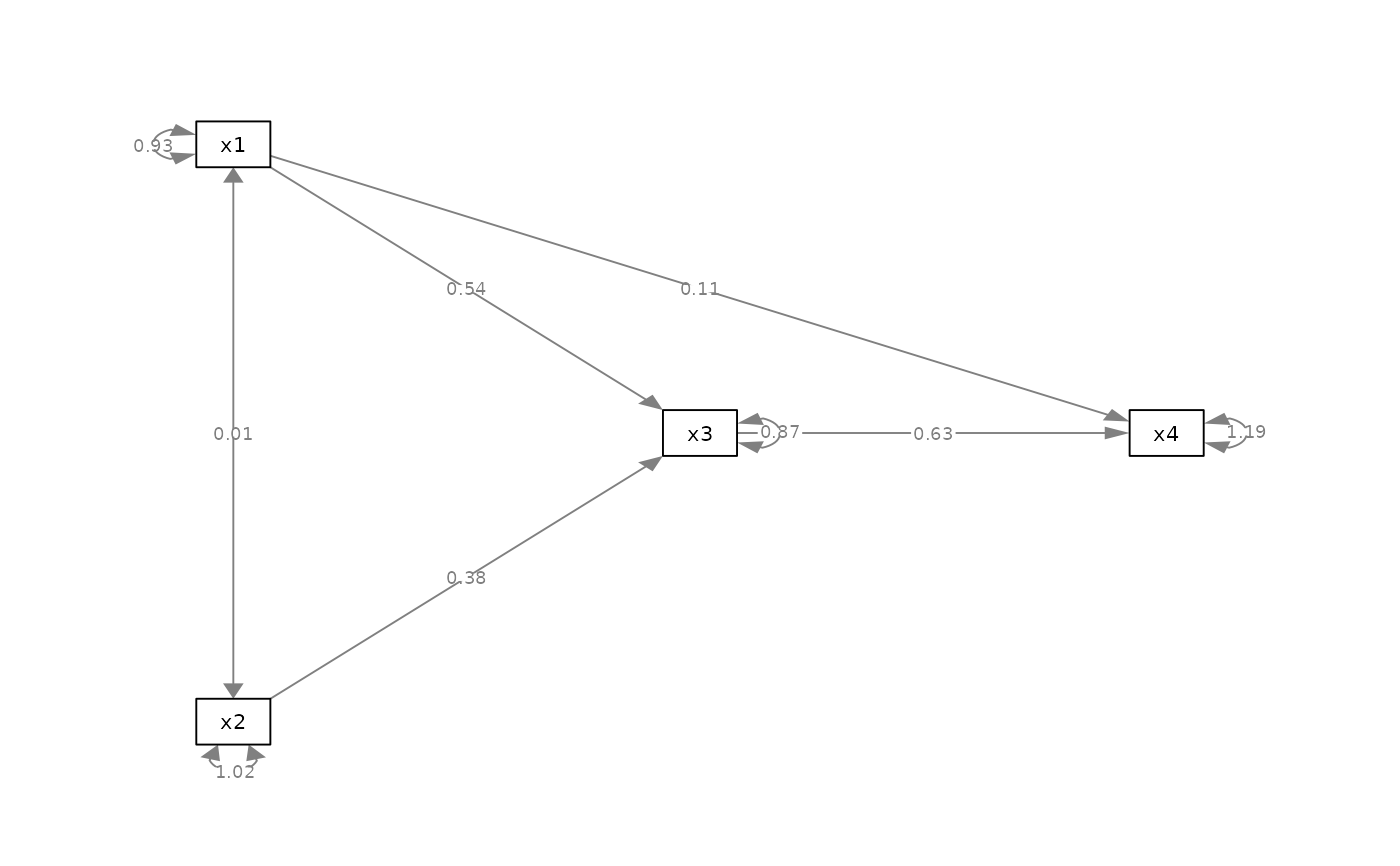

p_pa2v <- set_node_size(
 p_pa, c(x1 = 5, x2 = 10),
 how = "value"
)
plot(p_pa2v)

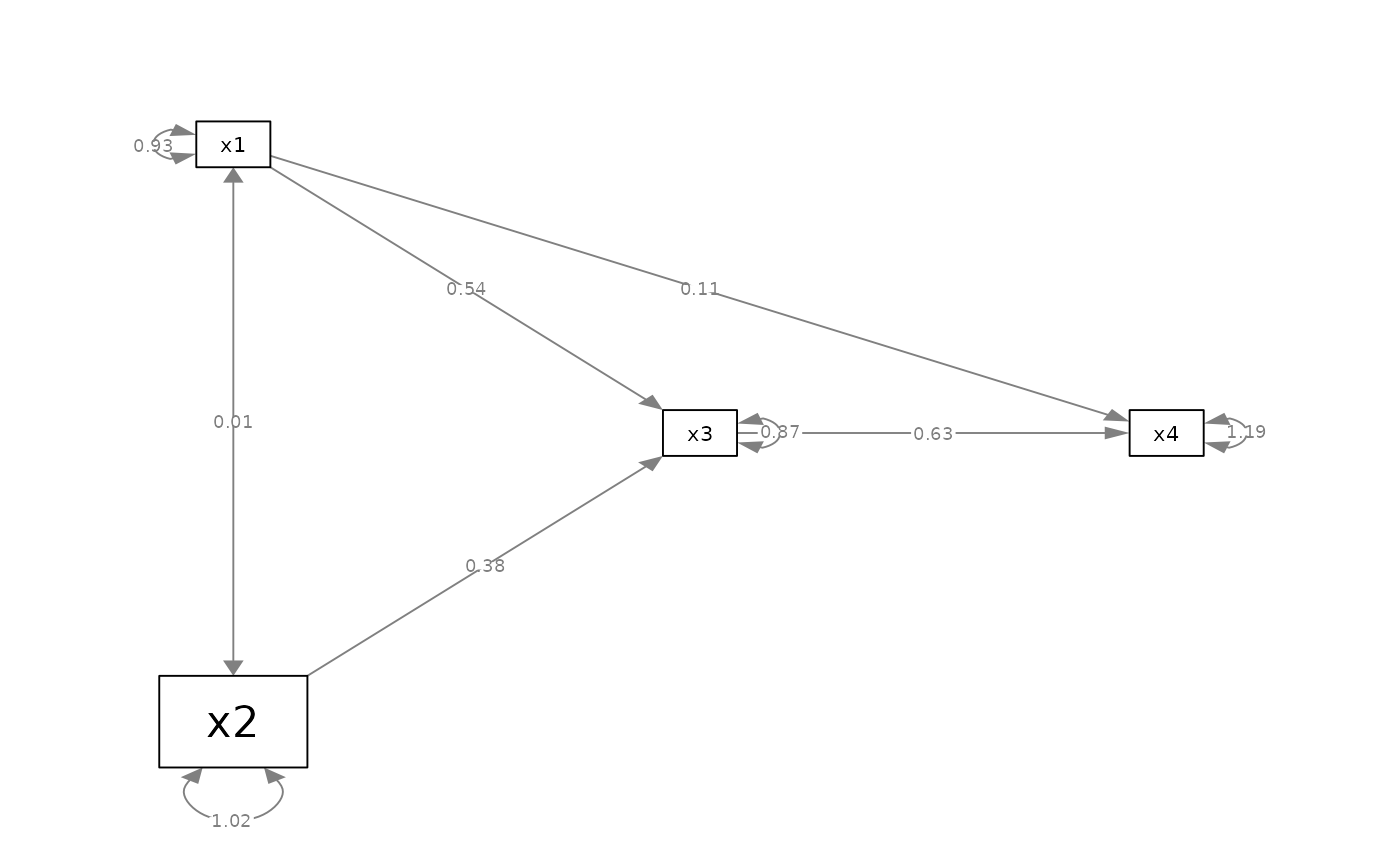

p_pa2v2 <- set_node_size(
 p_pa, c(x1 = 0.5, x2 = 2),
 how = "ratio"
)
plot(p_pa2v2)


p_pa2l <- set_node_shape(p_pa, "circle")
plot(p_pa2l)
