Set the Colors of Selected Nodes

Source: R/set_node_color.R
set_node_color.Rd

Set the colors of selected nodes.

Usage

set_node_color(semPaths_plot, colors = NULL, check_nodes = TRUE)

Arguments

semPaths_plot

A qgraph::qgraph object generated by semPlot::semPaths, or a similar qgraph object modified by other semptools functions. It can also be a list of qgraph::qgraph objects, probably though not necessarily from a multigroup model. If it is a list of qgraph::qgraph objects, then the function will be applied to all the objects.

colors

A named vector or a list of named list. See the Details section on how to set this argument.

check_nodes

Logical. If TRUE and at least one node specified in values are not in semPaths_plot.

Value

A qgraph::qgraph based on the original one, with the colors of selected nodes changed. If semPaths_plot is a list of qgraph::qgraph objects, then a list of processed qgraph::qgraph objects will be returned.

Details

Modify a qgraph::qgraph object generated by semPlot::semPaths and change the colors of selected nodes.

Setting the value of color_list

This argument can be set in three ways.

For a named vector, the name of an element should be the nodes for which the colors are to be changed. The names need to the displayed names if plotted, which may be different from the names in the model.

For example, to change the color of x, the name should be "x". Therefore, c("y" = "red", "x" = "red") changes the colors of the nodes y and x to "red" and "blue", respectively.

For a list of named lists, each named list should have two named values: node and new_color. The color of node will be set to new_color.

The second approach is no longer recommended, though kept for backward compatibility.

The last approach is setting color_list to a one-element vector with no name. All nodes in plot will then have the colors set to this value.

Examples

mod_pa <-
  'x1 ~~ x2
   x3 ~  x1 + x2
   x4 ~  x1 + x3
  '
fit_pa <- lavaan::sem(mod_pa, pa_example)
m <- matrix(c("x1",   NA,   NA,
                NA, "x3", "x4",
              "x2",   NA,   NA), byrow = TRUE, 3, 3)

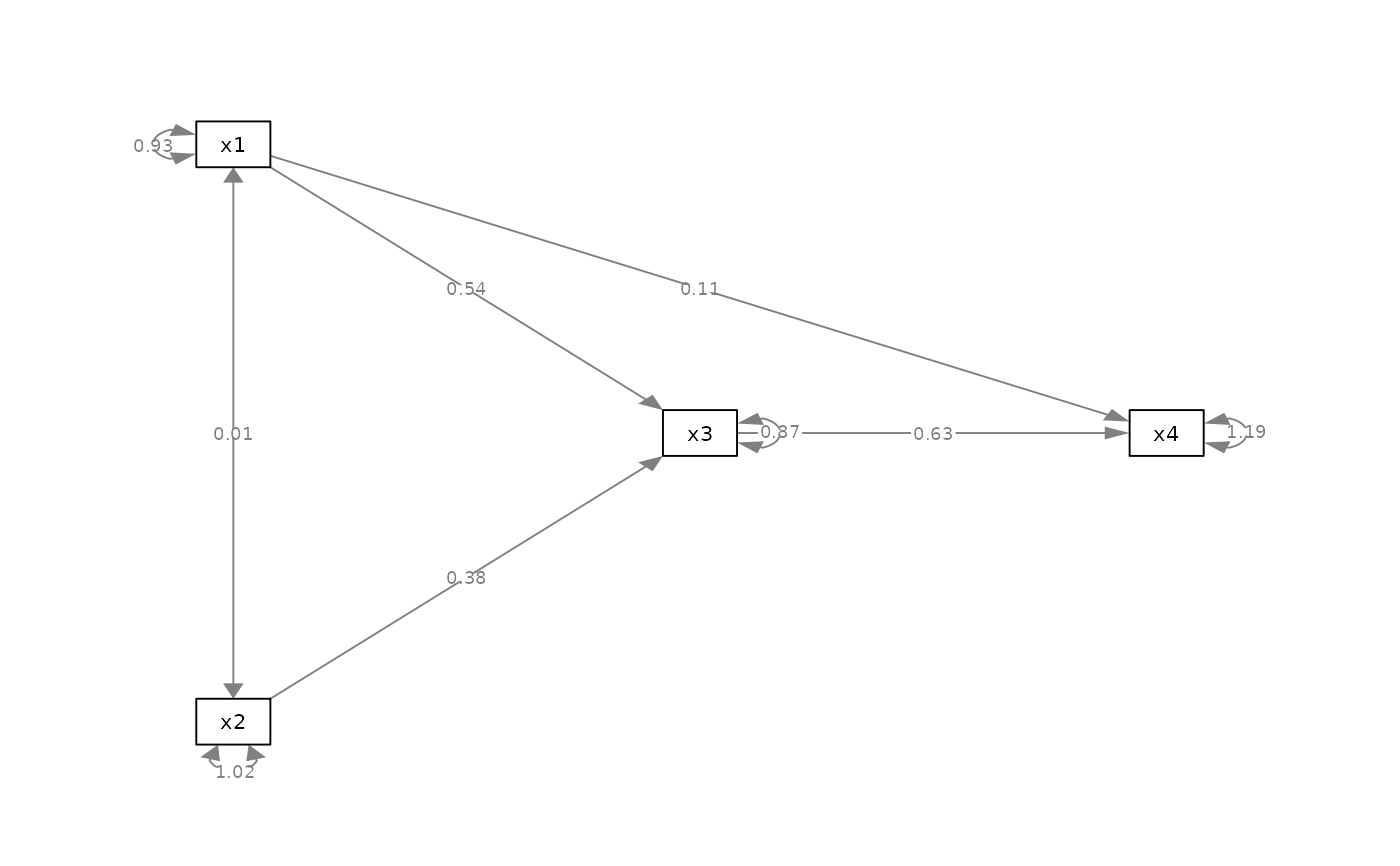

p_pa <- semPlot::semPaths(fit_pa, whatLabels="est",
            style = "ram",
            nCharNodes = 0, nCharEdges = 0,
            layout = m)

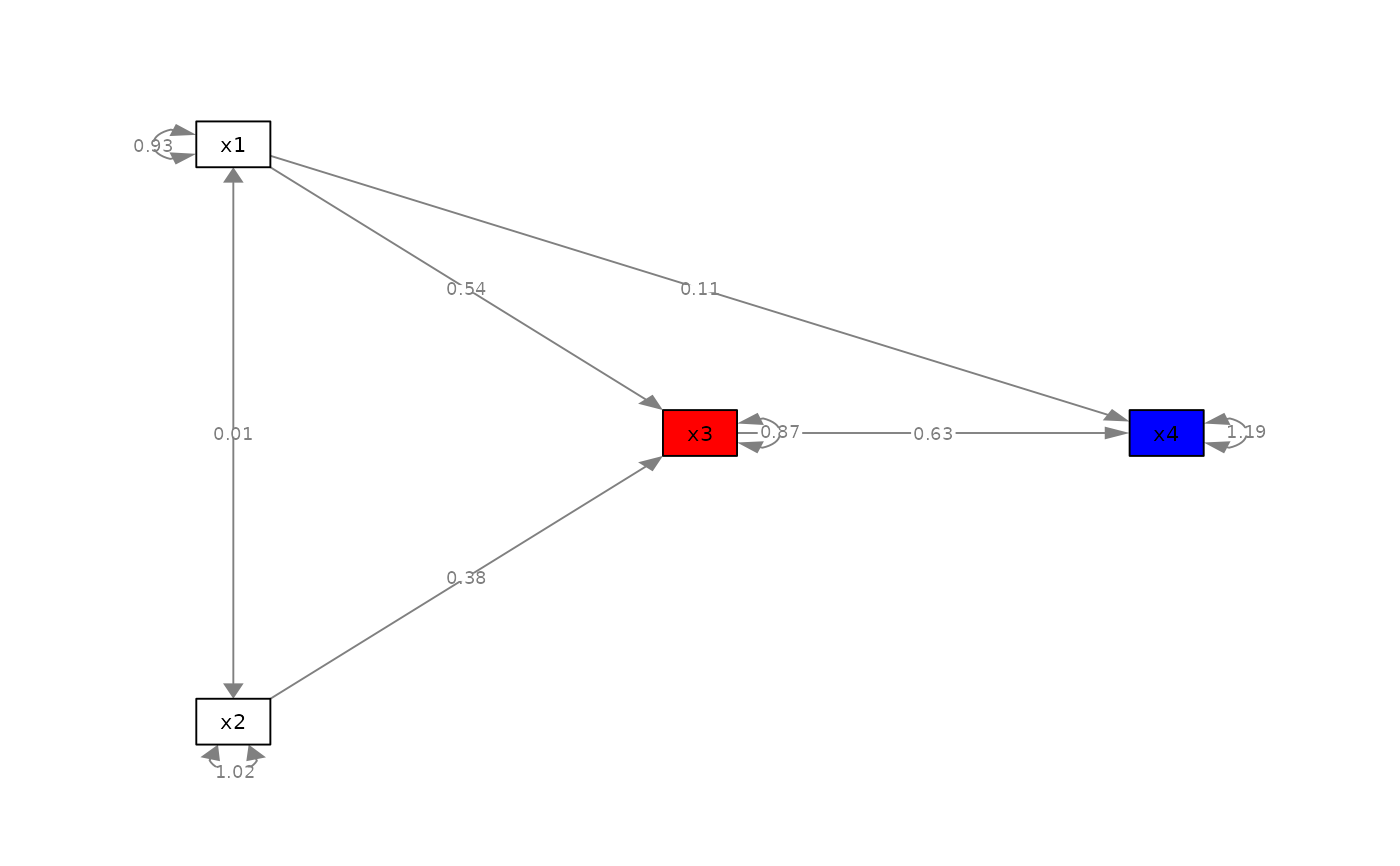

my_color_vector <- c(x3 = "red", x4 = "blue")

p_pa2v <- set_node_color(p_pa, my_color_vector)
plot(p_pa2v)

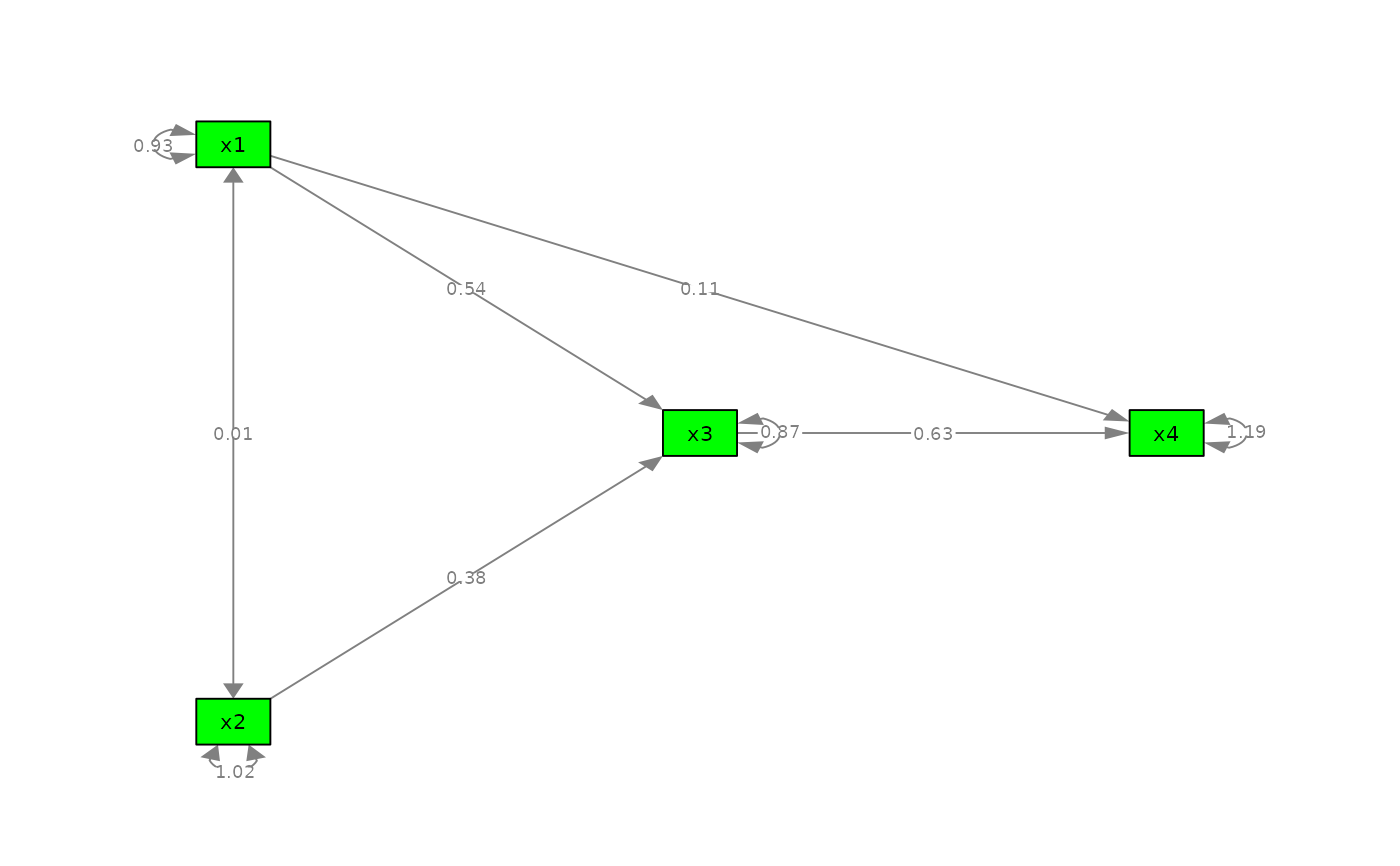

p_pa2l <- set_node_color(p_pa, "green")
plot(p_pa2l)
